Home All Products (62) SPIRAL WOUND GASKETS
It can be used in Refining plant, Chemical & Petrochemical plant, Power plant,
Nuclear plant, Compressors, Piping & heat exchanger & Vessels fertilizer plant &
Cement plant & Refineries etc.

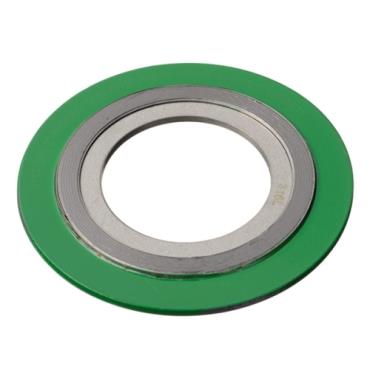

The spiral wound gaskets are made from ‘V’ Shaped metal strip with spirally
wound filler. Several continues turns of the metallic winding are secularly welded
with spot welding as per API Std. The normal shape is circular but it is possible to
make it Elliptical shape also. The use of steel supporting Inner & Outer ring of
gaskets are made with the same material of the spiral wound gaskets.
Spiral wound gaskets are manufactured with Inner ring, with outer ring, with Inner & Outer Ring & without outer Rings as per buyers specification. The most popular combination in this type of gaskets is S.S. 304 with CAF Filler. The filler materials with metal strip are CAF / Asbestos /P.T.F.E./ Grafoil / Non asbestos etc.
Spiral wound gaskets are manufactured in dimensions from 1/4” to 96” and thickness from 1/8” to 3/8” Generally,
gaskets thickness is 0.175” and outer ring thickness is 0.125”.Normally spiral wound gaskets are made as per ANSI B 16.5 std., ASME D 16.20 Std., API 605 Std. DIN 10 std. Bs 10,BS 3381, Bs 4865, Spiral wound gaskets are made in any size as per the customer’s specification (Non Standardsize)

SPIRAL WOUND GASKETS

assured purchase
True
Need More Info

Description

It can be used in Refining plant, Chemical & Petrochemical plant, Power plant, Nuclear plant, Compressors, Piping & heat exchanger & Vessels fertilizer plant & Cement plant & Refineries etc. The spiral wound gaskets are made from ‘V’ Shaped metal strip with spirally wound filler. Several continues turns of the metallic winding are secularly welded with spot welding as per API Std. The normal shape is circular but it is possible to make it Elliptical shape also. The use of steel supporting Inner & Outer ring of gaskets are made with the same material of the spiral wound gaskets. Spiral wound gaskets are manufactured with Inner ring, with outer ring, with Inner & Outer Ring & without outer Rings as per buyers specification. The most popular combination in this type of gaskets is S.S. 304 with CAF Filler. The filler materials with metal strip are CAF / Asbestos /P.T.F.E./ Grafoil / Non asbestos etc. Spiral wound gaskets are manufactured in dimensions from 1/4” to 96” and thickness from 1/8” to 3/8” Generally, gaskets thickness is 0.175” and outer ring thickness is 0.125”.Normally spiral wound gaskets are made as per ANSI B 16.5 std., ASME D 16.20 Std., API 605 Std. DIN 10 std. Bs 10,BS 3381, Bs 4865, Spiral wound gaskets are made in any size as per the customer’s specification (Non Standardsize)
